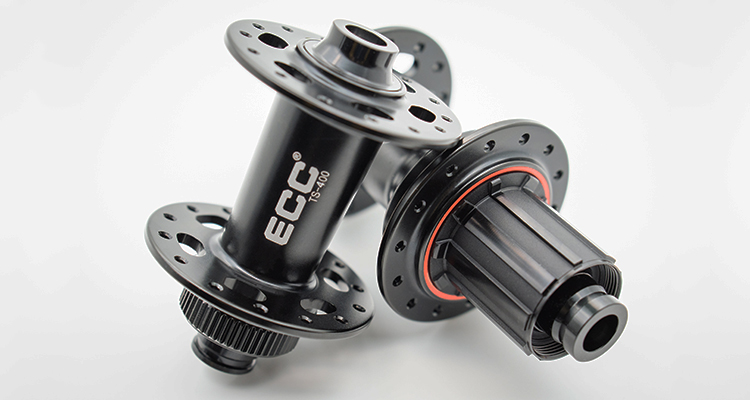

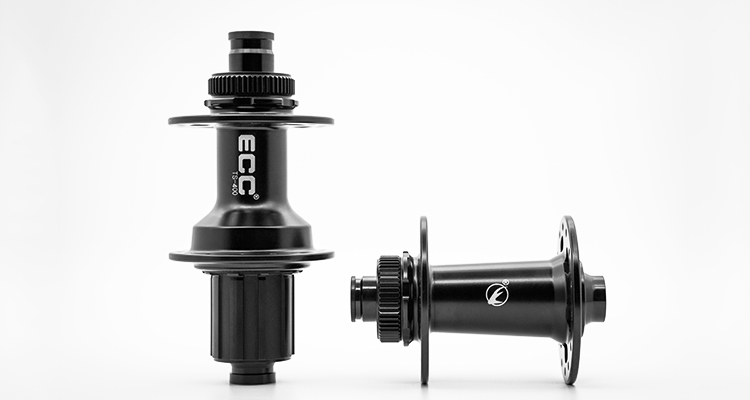

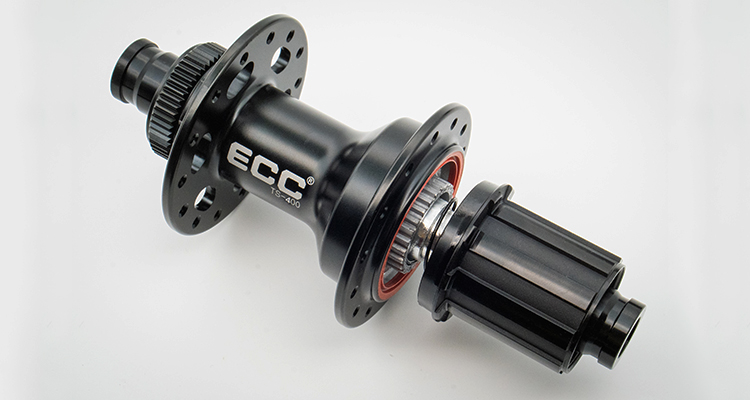

TS-400
Model Name | TS-400 |
Weight | 457g = 162g + 295g |
Engagement Teeth | 75T star ratchets |
Material of ratchet | Cr-Mo Ti |

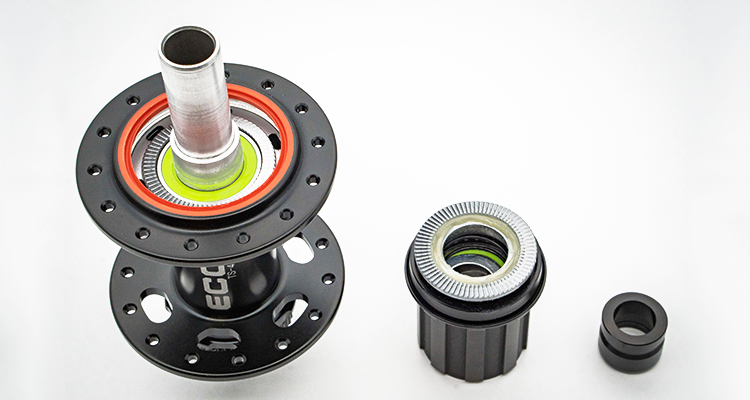

Material of freehub body | Alloy 7075-T6 |
Material of hub shell | Alloy 6061 |
Material of hub axles | AL-7075 |
Sealed Bearings | Front: 17287*2 ; Rear: 6902 * 4 |
P.C.D. ( spoke hole ) | Front: 56.2mm ; Rear: 56.2mm |
Hole Diameter | 2.6mm |
Gauge | 14G |

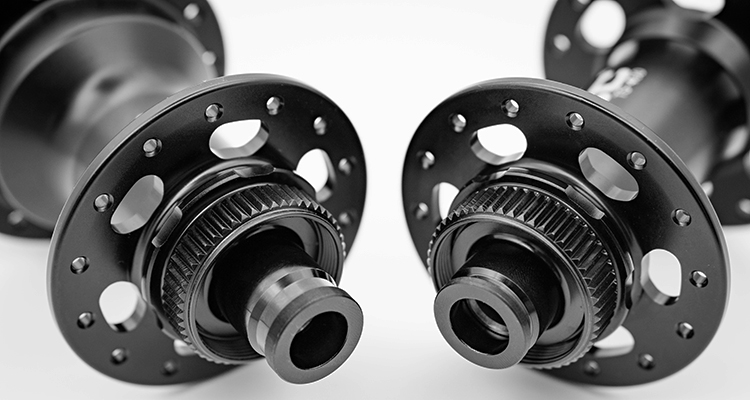

Brake | center lock disc brake |
Hub holes | 28H / 32H / 36H |
Spoke Type | J-bend |
Conversion Kits | Front: M9(QR) x100mm / 15x100mm ; Rear: M10(QR) x135mm / 12x142mm |
Anodized Colors | black, red, blue, gold, purple, green, pink, orange, silvery, Ti grey, rainbow |
* We asked a bike team tested the new hubs for more than one year, and meanwhile we did some modifications.
Now we confirm that they are extremely stable and work very well, so we really hope you can enjoy with our new model~
* TS-400 hubs are with 75T ratchet which make the engagement very fast, so they perform the best when climbing.
* ECC bike hubs are used Japanese Multemp professional liquid grease --- high lubricity.
* The gorgeous anodized surface won't fade even in 170℃ high temperature baking for 7 hours.
* Easily convert between axle configurations with side caps change, tool free.
* ECC hubs are popular for the high quality & fast engagement and lower price.
